Failed Cavity Wall Insulation: Survey Findings and What It Costs to Fix

Cavity wall insulation (CWI) was heavily promoted through government schemes from the 1990s onwards, and most of it works fine — but a meaningful minority of installations have failed, and failed CWI is now a recognised, fairly common cause of damp problems that surveyors specifically look for.

Why Cavity Wall Insulation Fails

Unsuitable wall type — CWI isn't appropriate for every property. Walls exposed to driving rain (coastal areas, exposed elevations), rendered walls with hairline cracks, or walls with existing damp issues are all higher-risk candidates, and some installers in the 2000s installed it regardless.

Poor installation — gaps or voids in the fill mean the insulation doesn't perform as intended and, worse, can create a bridge for moisture to cross the cavity that wouldn't otherwise be there.

Cavity too narrow — older properties sometimes have cavities narrower than modern guidance recommends, leaving too little clearance between the insulation and the outer leaf.

What Surveys Flag

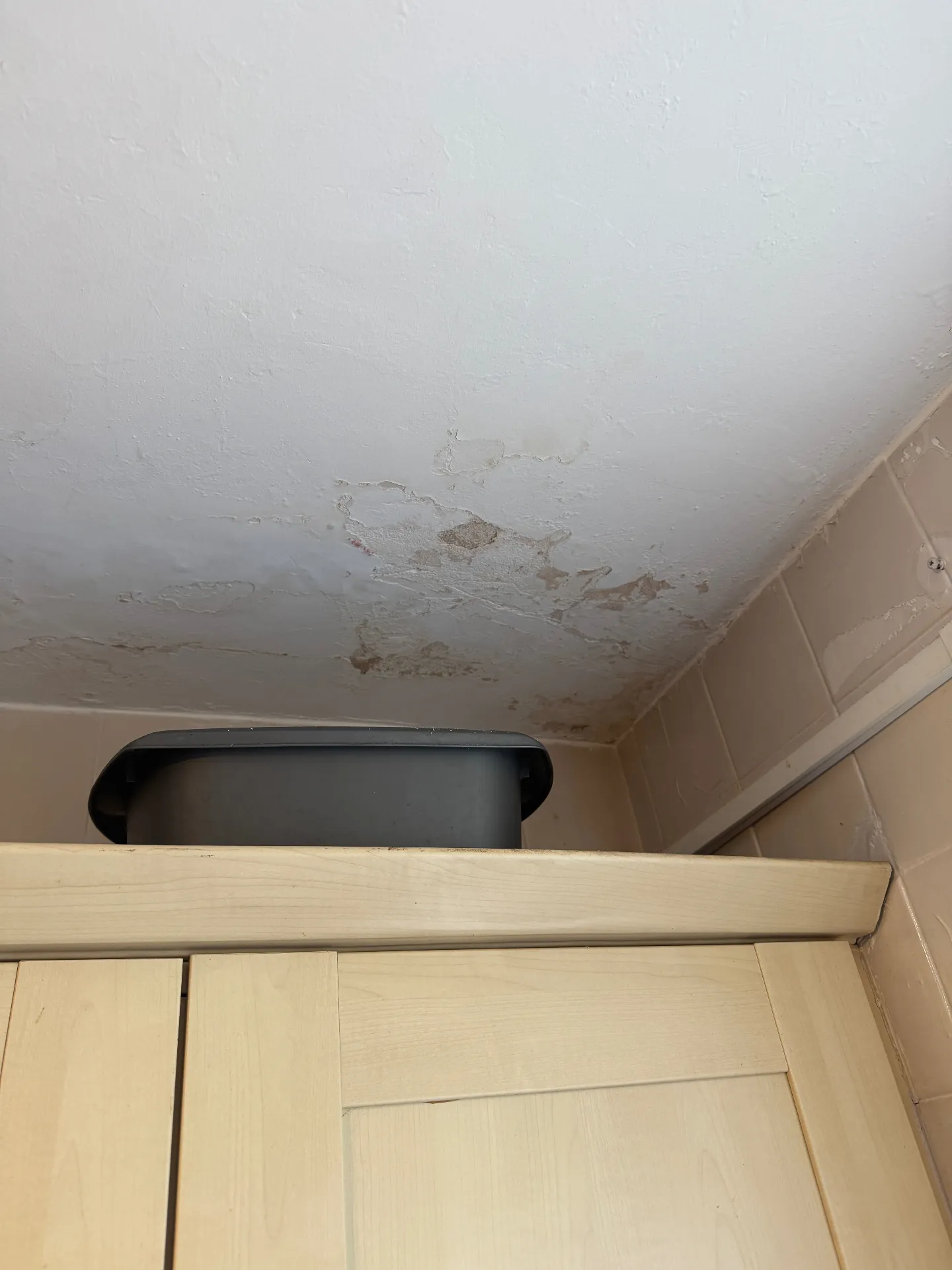

Damp patches, particularly after heavy rain — the classic sign, often appearing as patches that come and go with weather rather than a constant damp patch (which usually points to plumbing or a different penetrating damp source instead — see our guide on rising damp vs penetrating damp).

Cold spots on internal walls — thermal imaging surveys sometimes pick up voids in the insulation fill even before damp becomes visible.

Staining or discolouration to external render/brick — can indicate moisture bridging across the cavity from outside.

Reading Survey Language

"Cavity wall insulation noted, no visible defects" — reassuring, but worth checking whether it was ever independently surveyed (a borescope inspection), since visible symptoms don't always show up even where fill quality is poor.

"Evidence of damp penetration, cavity wall insulation present — recommend specialist investigation" — worth taking seriously; a CIGA-registered specialist (Cavity Insulation Guarantee Agency) can do a borescope survey to check the fill condition directly.

"Property unsuitable for cavity wall insulation due to exposure rating" — relevant if you're buying a property where CWI was installed despite an unsuitable wall type; this is exactly the scenario CIGA guarantee claims are designed for.

Realistic Costs

Item	Typical cost	Notes
Borescope/specialist CWI survey	£150 – £350	Confirms fill condition without removing insulation
CWI extraction (whole house)	£2,000 – £4,500	Depends on property size and access
Re-rendering after extraction	£2,000 – £6,000	Often needed if extraction damages external finish
CIGA guarantee claim	Free if eligible	Most CWI from 1995 onwards is covered by a 25-year guarantee

Check the CIGA Guarantee First

Before assuming you'll be paying for extraction yourself, check whether the property's CWI is covered by a CIGA guarantee — most professionally installed CWI since 1995 is, and CIGA will often fund investigation and remedial work (including extraction) if the insulation is found to be the cause of damp. It's a genuinely useful step that a lot of homeowners simply don't know exists.

How Chat to Your Builder Helps

For £59, we'll go through your survey's damp and insulation findings, help you judge whether CWI is the likely cause, and point you toward the CIGA guarantee route where it applies before you spend anything.
